Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel) (HDMI), 4.95Gbps (1.65Gbps per graphic channel) (DGKat).
-
HDTV Compatible.
-
HDCP Compliant.
-
DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
-
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
-
HDMI Support - x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD (only on the TP inputs and outputs).
-
3D Pass-Through.
-
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
-
System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.
-
Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC−DGKat524, BC−DGKat623 or BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, source device and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
-
Active Input & Output LED Indicators.
-

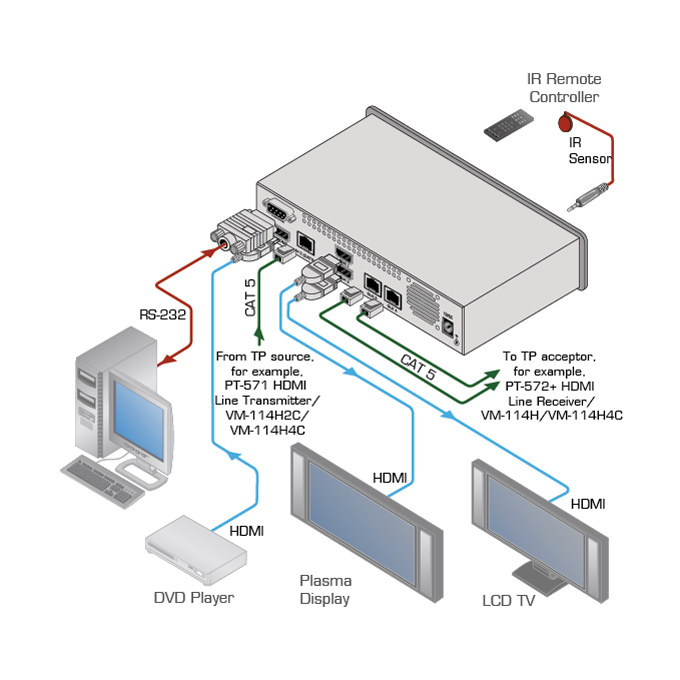

Compatible Transmitters/Receivers - Transmitters: PT−571, TP−573, TP−577; Receivers: PT−572, TP−575, TP−576, TP−577.
-
Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 90m (270ft) of each other.
-
Flexible Control Options - Front panel buttons, RS−232, infrared control sensor, remote included.
-
Desktop Size - Compact size. 2 units can be rack mounted side−by−side in a 1U rack space with an optional
RK−1 adapter.
