Bộ chia 1-5 và khuếch đại audio Kramer 6505

Liên Hệ

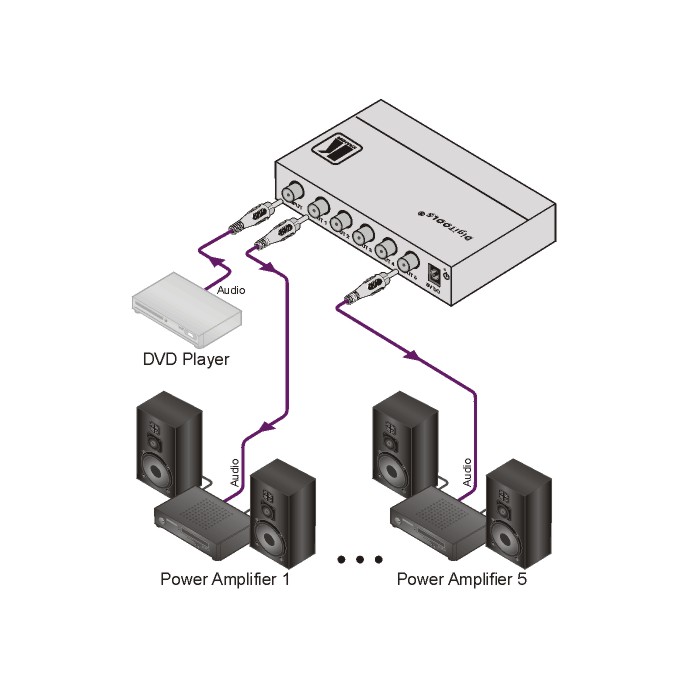

The 6505 is a high-performance distribution amplifier for S/PDIF digital audio signals. The unit takes one S/PDIF input and distributes the signal to five identical S/PDIF outputs.

Input - 1 RCA connector.
Output - 5 RCA connectors.
Sampling Rates - 32kHz to 96kHz.
Signal Re-clocking & Re-sampling - Enables transmission of S/PDIF signals over longer distances.
Size - Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

Applications:

Video and audio production facilities.

Recording studios, for connecting a source to several acceptors.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUT:	1 S/PDIF on an RCA connector.
OUTPUTS:	5 S/PDIF on RCA connectors.
STANDARDS:	CP1201, IEC−60958, AES−3id and S/PDIF.
SAMPLE RATE:	32kHz to 96kHz.
INPUT IMPEDANCE:	75Ω.
OUTPUT IMPEDANCE:	75Ω.
POWER CONSUMPTION:	5V, 120mA.
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:	−40° to +70°C (−40° to 158°F).
HUMIDITY:	10% to 90%, RHL non−condensing.
DIMENSIONS:	12cm x 6.95cm x 2.44cm (4.72" x 2.74" x 0.96") W, D, H.
WEIGHT:	0.3kg (0.66lbs) approx.
INCLUDED ACCESSORIES:	Power supply, mounting bracket.
OPTIONS:	RK−3T 19" rack adapter.
