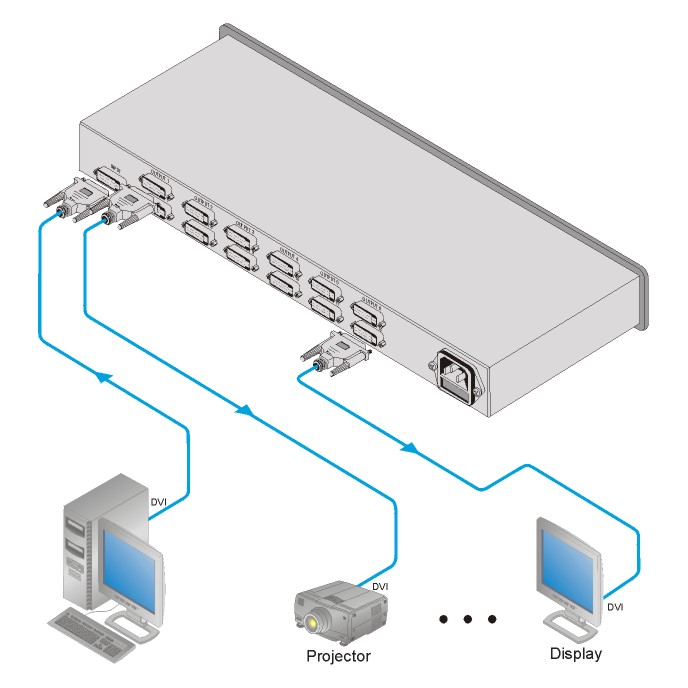

The VM-12HDCP is an HDCP-compliant distribution amplifier for DVI-D signals with resolution up to 1080p or UXGA. It reclocks and equalizes the signal and distributes it to twelve identical outputs.

Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant.
HDMI Support - HDMI Compressed Audio Channels.
Kramer Equalization & re‑Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for DVI systems.
Active Input & Output LED Indicators.
Worldwide Power Supply - 100−240V AC.
Size - Standard 19" (1U). Rack "ears" included.

Applications:

Multiple screen applications.

Rental and staging.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUT:	1 DVI−D on a DVI−I connector, 1.2Vpp; DDC signal 5Vpp (TTL).
OUTPUTS:	12 DVI−D on DVI−I connectors, 1.2Vpp; DDC signal 5Vpp (TTL).
BANDWIDTH:	4.95Gbps (1.65Gbps per graphic channel).
CONTROLS:	SELECT and READ buttons for selecting and storing EDID information.
POWER CONSUMPTION:	100−240V AC, 50/60Hz, 11VA.
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:	−40° to +70°C (−40° to 158°F).
HUMIDITY:	10% to 90%, RHL non−condensing.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	2.5kg (5.5lbs) approx.
INCLUDED ACCESSORIES:	Power cord, rack "ears".
