Bộ chia 1-5 và khuếch đại RGBHV Video Kramer VM-1055

Liên Hệ

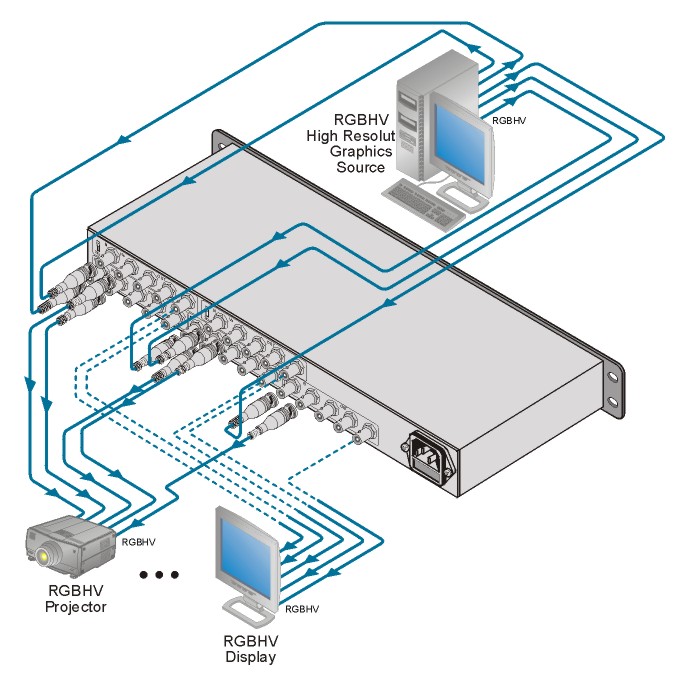

The VM-1055 is a high-performance distribution amplifier for RGBHV video signals. It provides correct buffering and isolation and distributes the signal to five identical outputs.

High Bandwidth - 300MHz (−3dB).
HDTV Compatible.
Selectable Sync input Termination - 75Ω (video), 510Ω (Graphics/TTL).
Size - Standard 19" (1U).

Applications:

Computer and workstation RGBS distribution.

Video duplication studios, delivering undiminished quality video duplicates.

Broadcast component signal distribution.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS:	1x5 component/RGBHV/composite video, 1Vpp/75Ω on BNC connectors, (2 of them can be either video or SYNC 1Vpp/75Ω or TTL level/510Ω).
OUTPUTS:	5x5 component/RGBHV/composite video, 1Vpp/75Ω on BNC connectors (2 of them can be either video or SYNC 1Vpp/75Ω or TTL level/510Ω).
MAX. VIDEO OUTPUT:	2Vpp.
VIDEO BANDWIDTH (-3DB):	300MHz.
DIFF. GAIN:	0.1%.
DIFF. PHASE:	0.1Deg.
K-FACTOR:	<0.05%.
VIDEO S/N RATIO:	Better than 74dB.
COUPLING:	DC.
NON-LINEARITY:	0.1%.
POWER CONSUMPTION:	230V AC 50/60Hz (115V USA), 5.3VA.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	2.6kg (5.7lbs) approx.
INCLUDED ACCESSORIES:	Power cord.
