Bộ chia 1-5 và khuếch đại Component Video Kramer VM-1045

Liên Hệ

The VM-1045 is a high-performance distribution amplifier for component video signals. It can be configured as a four 1:5 composite video, two 1:5 s-Video (Y/C) or one 1:5 component (RGB/S) distribution amplifier.

High Bandwidth - 415MHz (−3dB).
HDTV Compatible.
Looping Input - Each channel.
Selectable Input Signal Termination - Each channel.
Level (Gain) and EQ (Peaking) Controls - Each channel.
Worldwide Power Supply - 100−240V AC.
Size - Standard 19" (1U). Rack "ears" included.

Applications:

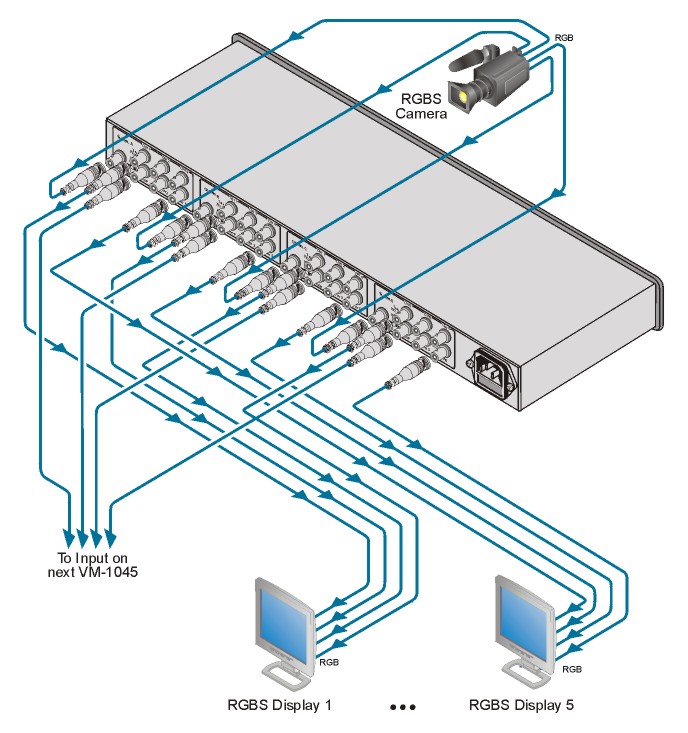

Computer and workstation RGBS distribution.

Video duplication studios, delivering undiminished quality video duplicates.

Broadcast component signal distribution.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS:	4x1 video with loop, 1Vpp/75Ω on BNC connectors.
OUTPUTS:	4x5 video, 1Vpp/75Ω on BNC connectors.
MAX. OUTPUT LEVEL:	2.7Vpp
BANDWIDTH (-3DB):	415MHz.
DIFF. GAIN:	0.03%.
DIFF. PHASE:	0.03Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	73dB, 5MHz.
CROSSTALK (ALL HOSTILE):	−58dB.
CONTROLS:	Level: –2dB to +6.1dB; EQ.: 0dB to 9dB @50MHz.
COUPLING:	DC.
POWER CONSUMPTION:	100−240V AC, 50/60Hz, 2VA.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	2.6kg (5.7lbs) approx.
INCLUDED ACCESSORIES:	Power cord, rack "ears".
