Bộ chia 2x1-2 và khuếch đại HDMI kramer VM-22H

Liên Hệ

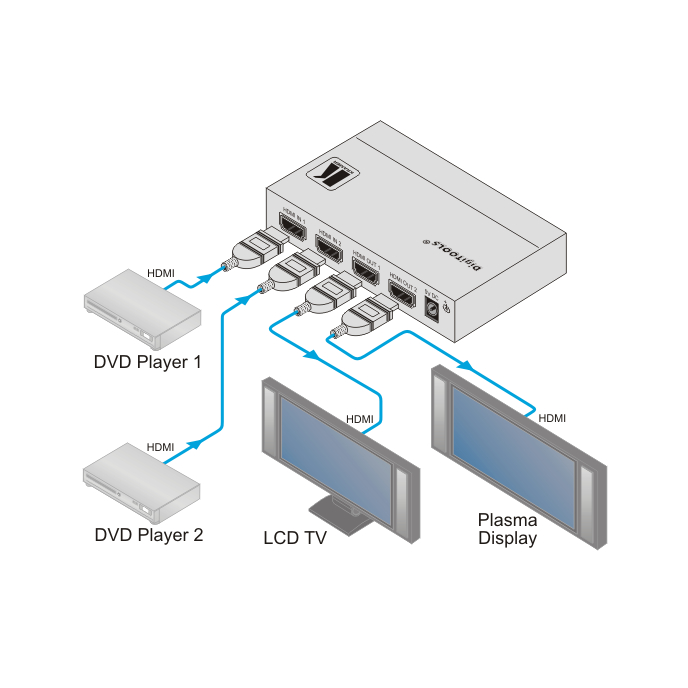

The VM-22H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to two identical outputs.

Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
HDCP Compliant.
HDMI Support - Deep Color, x.v.Color™, Lip Sync, CEC.
3D Pass-Through.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
Active Output LED Indicators.
Control - Front panel or IR remote switching.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS:	2 HDMI connectors.
OUTPUTS:	2 HDMI connectors.
BANDWIDTH:	6.75Gbps (2.25Gbps per graphic channel).
COMPLIANCE WITH HDMI STANDARD:	Supports HDMI and HDCP.
CONTROLS:	EDID SETUP button, input select button, IR.
INDICATOR LEDS:	IN 1, IN 2, OUT 1, OUT 2, and ON LEDs.
POWER CONSUMPTION:	5V DC, 910mA.
DIMENSIONS:	12cm x 7.15cm x 2.44cm (4.7" x 2.8" 0.96") W, D, H.
WEIGHT:	0.3kg (0.67lbs) approx.
INCLUDED ACCESSORIES:	Power supply, bracket installation kit, IR remote control.
OPTIONS:	HDMI/HDMI male−to−male cables.
