Bộ chia 1-2 và khuếch đại S-Video Kramer PT-102SN

Liên Hệ

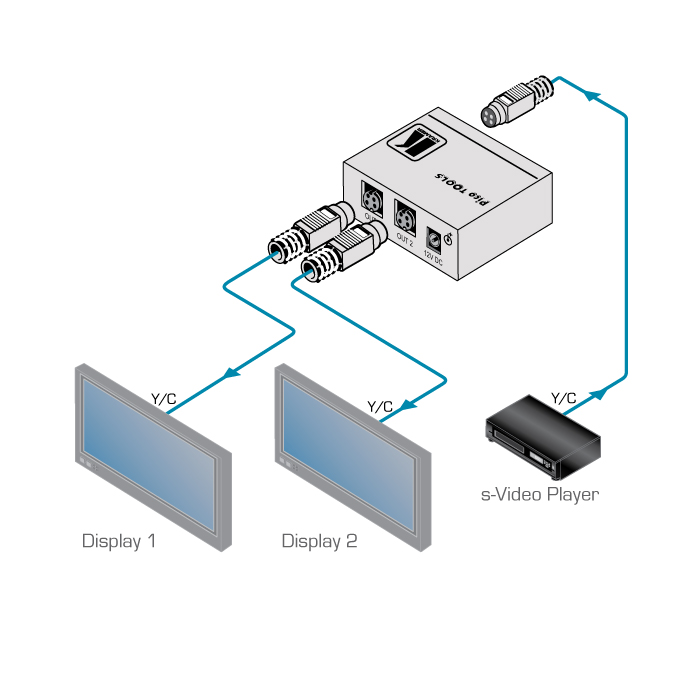

The PT-102SN is a high-performance video distribution amplifier for s-Video (Y/C) video signals. The unit takes one input, provides correct buffering and isolation, and distributes the signal to two identical outputs.

Bandwidth (Y) - 150MHz (−3dB).
Y & C Level (Gain) Controls.
Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.

Applications:

Audio/video duplication studios.

Retail showrooms, home theater systems.

CCTV and security systems.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUT:	1 s−Video on a 4−pin connector.
OUTPUTS:	2 s−Video on 4−pin connectors.
MAX. OUTPUT LEVEL:	1.3Vpp.
BANDWIDTH (-3DB):	150MHz.
DIFF. GAIN:	0.05%.
DIFF. PHASE:	0.05Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	76dB @5MHz.
CONTROLS:	Gain: luma (Y) −1.9dB to +5.1dB; chroma (C) 0dB to +6.8dB, @5MHz.
COUPLING:	AC.
POWER CONSUMPTION:	12V DC, 25mA.
DIMENSIONS:	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96") W, D, H.
WEIGHT:	0.14kg (0.31lbs) approx.
INCLUDED ACCESSORIES:	Power supply, mounting bracket.
OPTIONS:	RK−4PT 19” rack adapter.
