Bộ chia 1-10 và khuếch đại HD-SDI Multimode kramer VM-20HD

Liên Hệ

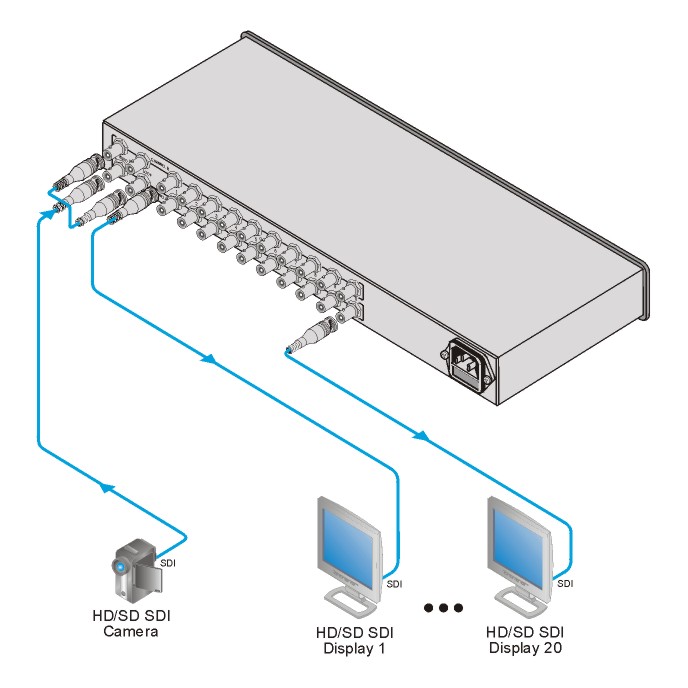

The VM-20HD is a high-performance distribution amplifier for HD-SDI and dual link HD-SDI signals. The unit can be configured as a 1:20, two 1:10 or a 1:10 dual link distribution amplifier.

Max. Data Rate - 1.485Gbps.
HDTV Compatible.
Multi-Standard Operation - SDI (SMPTE 259M/344M), HD−SDI (SMPTE 292M) & dual link HD−SDI (SMPTE 372M) signals.
Multi-Mode Operation - Configure as one 1:20, two 1:10 or one dual link 1:10 DA.
Looping Inputs for Cascading Multiple Units.
Kramer Equalization & re‑Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
HD-SDI & SDI Input Indication LEDs.
Worldwide Power Supply - 100−240V AC.
Size - Standard 19" (1U). Rack "ears" included.

Applications:

SDI production studios for signal distribution.

Broadcast studios for on-air operation.

SDI field production.

Using with SDI video sources such as professional digital cameras.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS:	2 SD/HD−SDI and dual link with loop, 75Ω on BNC connectors.
OUTPUTS:	22 SD/HD−SDI and dual link, equalized and reclocked, 75Ω on BNC connectors.
RESOLUTION:	8 and 10−bits (automatic).
MAX. OUTPUT LEVEL:	800mVpp/75Ω.
MAX. DATA RATE:	1.485Gbps.
COUPLING:	AC.
POWER CONSUMPTION:	100−240V AC; 50/60Hz, 9VA.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	1.5kg (3.3lbs) approx.
INCLUDED ACCESSORIES:	Power cord, rack "ears".
