Bộ chia 1-10 và khuếch đại S-Video Kramer VM-100YC

Liên Hệ

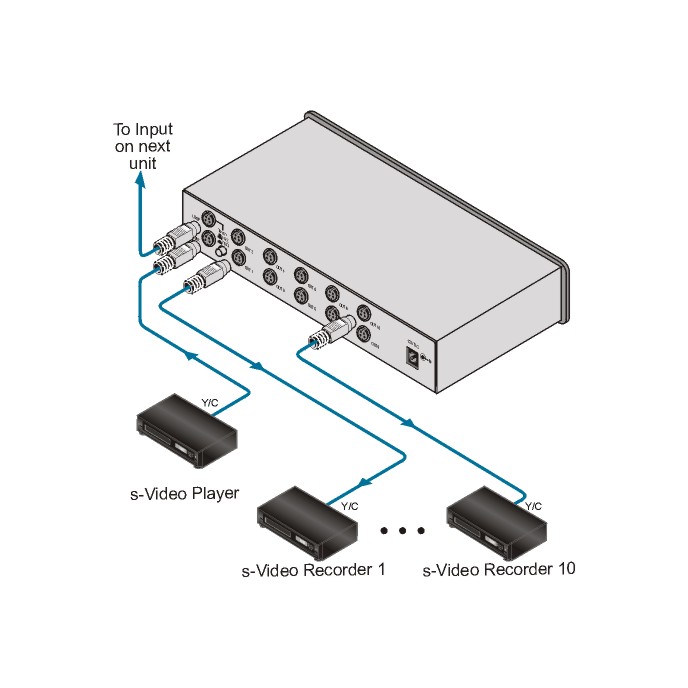

The VM-100YC is a high-performance distribution amplifier for s-Video (Y/C) signals. It takes one input, provides correct buffering and isolation, and distributes the signal to ten identical outputs.

Bandwidth (Y) - 275MHz (−3dB).
Looping Input.
Level (Gain) Controls - Y & C (on the underside).
Selectable Input Signal Termination.
Desktop Size - Compact size. Two units can be rack mounted side−by−side in a 1U rack space with the optional RK−1 adapter.

Applications:

Production and duplication facilities.

Schools, boardrooms, any A/V system requiring high quality signal distribution.

Retail stores, point-of-sale systems, CCTV and security applications.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUT:	1 s−Video: looping, 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C), on 4−pin connectors with a termination switch.
OUTPUT:	10 s−Video: 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C), on 4−pin connectors; 1 s−Video loop on a 4−pin connector.
MAX. OUTPUT LEVEL:	1.9Vpp/75Ω (Y).
BANDWIDTH (-3DB):	275MHz, (Y), fully loaded.
DIFF. GAIN:	0.03%.
DIFF. PHASE:	0.03 Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	81.4dB.
CONTROLS:	Trimmers for "Y" level: −1.4 to +6dB; "C" level: −1 to +6.3dB.
COUPLING:	AC.
POWER CONSUMPTION:	12V DC, 80mA.
DIMENSIONS:	21.5cm x 16.2cm x 4.4cm (8.45" x 6.4" x 1.7") W, D, H.
WEIGHT:	0.93kg (2lbs) approx.
INCLUDED ACCESSORIES:	12V DC power supply.
OPTIONS:	RK−1 19" rack adapter.
