Bộ chia 1-2 và khuếch đại RGBS-Component Video Kramer VM-1042

Liên Hệ

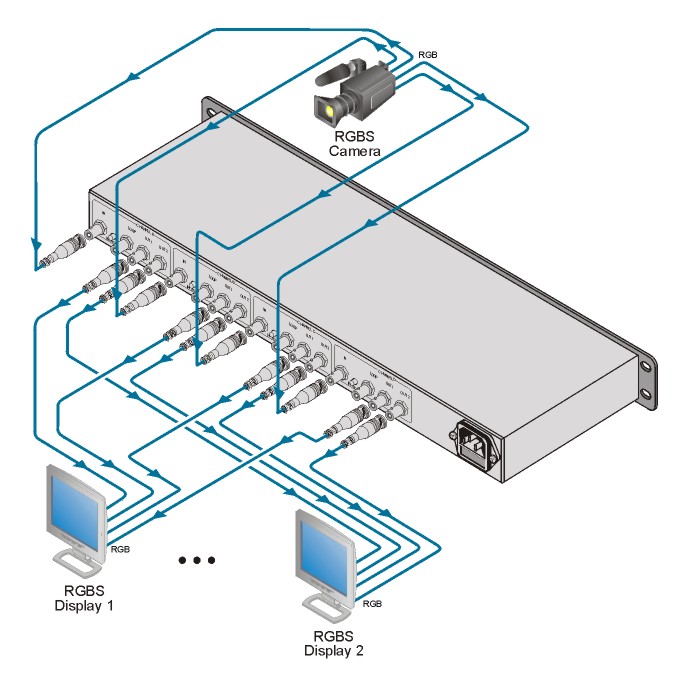

The VM-1042 is a high-performance distribution amplifier for RGBS or component video signals. The unit has four channels of single BNC inputs each with two outputs that allow configuration as a four 1:2 composite video, two 1:2 s-Video (Y/C), or one 1:2 RGBS or component (YUV) video distribution amplifier.

Bandwidth - 200MHz (−3dB).
HDTV Compatible.
Looping Input.
Selectable Input Signal Termination.
Size - Standard 19" (1U).

Applications:

Computer and workstation RGBS distribution.

Video duplication studios, delivering undiminished quality video duplicates.

Broadcast component signal distribution.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS:	4 component/composite video with loop, 1Vpp/75Ω on BNC connectors with termination switches.
OUTPUTS:	2x4 component/composite video, 1Vpp/75Ω on BNC connectors.
MAX. VIDEO OUTPUT:	2Vpp.
VIDEO BANDWIDTH (-3DB):	200MHz.
DIFF. GAIN:	0.05%.
DIFF. PHASE:	0.05Deg.
K-FACTOR:	0.05%.
VIDEO S/N RATIO:	73dB.
NON-LINEARITY:	0.1%.
CONTROL:	Level: −2.2dB to +2dB, EQ.: 0 to +1.3dB @4.4MHz via underside trimmers.
COUPLING:	DC.
POWER CONSUMPTION:	230V AC, 50/60Hz (115V USA), 3.2VA.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	2.5kg (5.5lbs) approx.
INCLUDED ACCESSORIES:	Power cord.
