Bộ chia 2x1-16 và khuếch đại HDMI Kramer VM-216H

Liên Hệ

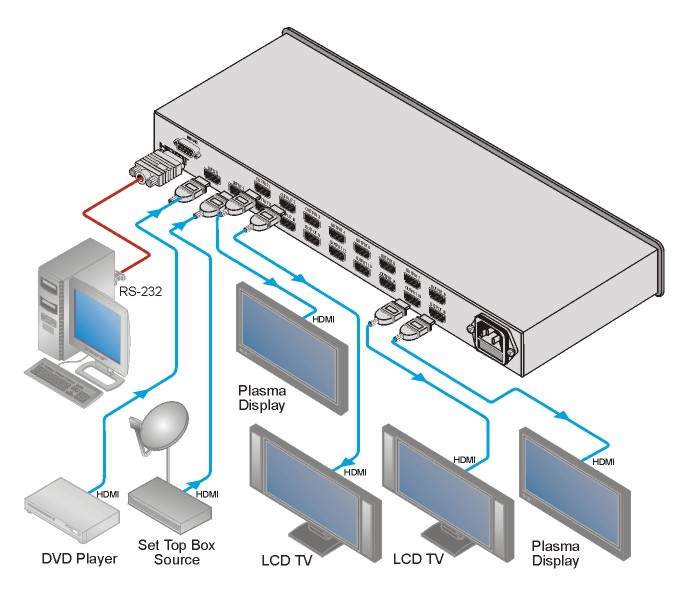

The VM-216H is a distribution amplifier for HDMI signals. It reclocks and equalizes one of 2 selectable input signals and distributes it to 8 or 16 identical outputs.

Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant.
HDMI Support - Deep Color, x.v.Color™, Lip Sync, CEC.
3D Pass-Through.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
Control - RS−232 & IR.
Active Output LED Indicators.
Worldwide Power Supply - 100−240V AC.
Standard 19” Rack Mount Size - 1U.

Applications:

Home theater, presentation and multimedia applications.

Rental and staging.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS:	2 on HDMI connectors.
OUTPUTS:	16 on HDMI connectors.
BANDWIDTH:	6.75Gbps (2.25Gbps per graphic channel).
COMPLIANCE WITH HDMI STANDARD:	Supports HDMI and HDCP.
CONTROLS:	EDID, IN 1, IN 2, IR remote controller and LOCK buttons.
INDICATOR LEDS:	Output status LEDs.
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:	−40° to +70°C (−40° to 158°F).
HUMIDITY:	10% to 90%, RHL non−condensing.
POWER CONSUMPTION:	100−240V AC, 50/60Hz, 48VA.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	2.5kg (5.5lbs) approx.
INCLUDED ACCESSORIES:	Power cord, IR remote control transmitter.
