Bộ chia 1-10 và khuếch đại Component Video Kramer VM-100C

Liên Hệ

The VM−100C is a high−performance distribution amplifier for component (RGB/YUV) video signals. It takes one input, provides correct buffering and isolation, and distributes the signal to 10 identical outputs on RCA connectors.

High Bandwidth - 450MHz (−3dB).
HDTV Compatible.
Level (Gain) and EQ (Peaking) Controls.
Looping Input.
Selectable Input Signal Termination.
Worldwide Power Supply - 100−240V AC.
Size - Standard 19" (1U).

Applications:

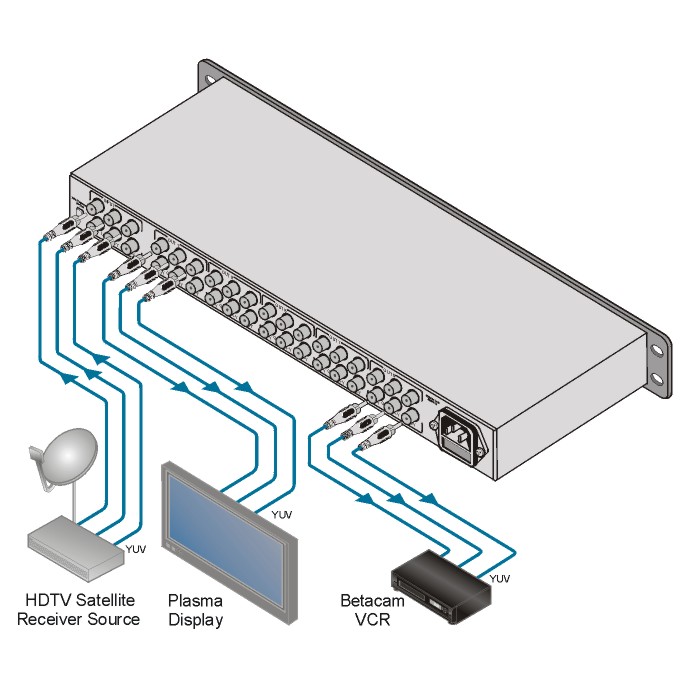

Component video signal distribution.

Video duplication studios, delivering undiminished quality duplicates.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS:	1 component video with loop (Y, Pb/Cb, Pr/Cr) on RCA connectors.
OUTPUTS:	10 component video (Y, Pb/Cb, Pr/Cr) on RCA connectors.
MAX. OUTPUT LEVEL:	2.5Vpp.
BANDWIDTH (-3DB):	450MHz, fully loaded.
DIFF. GAIN:	0.03%.
DIFF. PHASE:	0.03Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	76.8dB.
CROSSTALK (ALL HOSTILE):	–51dB.
CONTROLS:	Level: –1dB to +6.4dB; EQ.: 0dB to +7.3dB.
COUPLING:	DC.
POWER CONSUMPTION:	100−240V AC, 50/60Hz; 46mA.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	2.7kg (6lbs) approx.
INCLUDED ACCESSORIES:	Power cord.
