Bộ chia 1-8 và khuếch đại SDI Kramer SD-7108

Liên Hệ

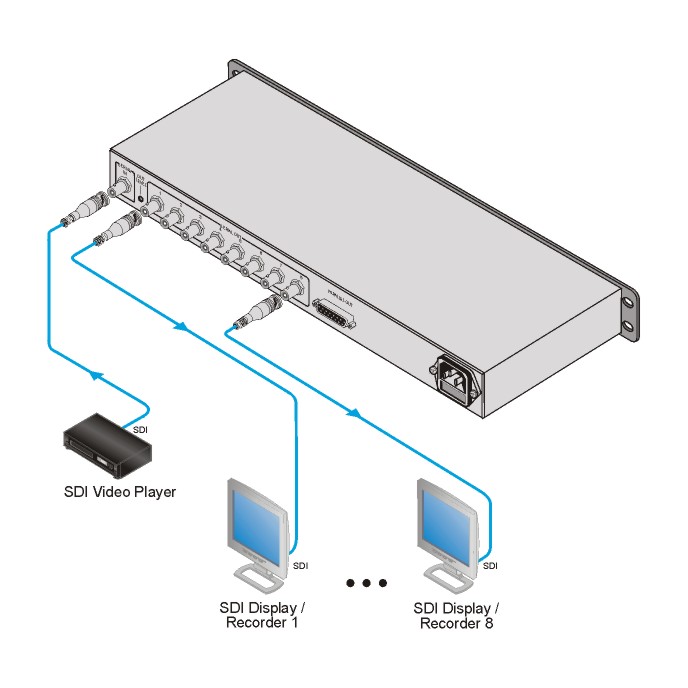

The SD-7108 is a high-performance distribution amplifier for multi-standard SDI (SMPTE 259M) video signals. It takes one input, provides re-clocking and equalization and distributes the signal to eight identical outputs and one parallel ECL output.

Level (Gain) Control.
Resolution - 8 & 10−bits (automatic).
Output - Parallel ECL output on a 25−pin D−sub connector.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
Size - Standard 19" (1U).

Applications:

SDI production studios for signal distribution and equalization.

Broadcast studios for deserialization and on-air operation.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUT:	1 SDI, 75Ω on a BNC connector.
SERIAL OUTPUTS:	8 SDI reclocked, 75Ω on BNC connectors, adjustable amplitude.
PARALLEL OUTPUT:	ECL level outputs on a 25−pin D−sub (F) connector.
VIDEO RESOLUTION:	10−bit or 8−bit, automatic according to input resolution.
STANDARDS:	4fsc PAL, 4fsc NTSC, 4:2:2 (525/625), and 360Mbps widescreen (525/625).
EQUALIZATION:	Automatic for up to >30dB cable loss.
POWER CONSUMPTION:	100−240V AC, 50/60Hz, 14VA.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	2.5kg (5.5lbs) approx.
INCLUDED ACCESSORIES:	Power cord.
