Bộ chia 1-4 và khuếch đại Composite Video Kramer 104LN

Liên Hệ

The 104LN is a high-performance line amplifier for composite or SDI video signals. It includes differential circuitry to help eliminate noise often found on the input cable in a long run.

High Bandwidth - 423MHz (−3dB).
Differential Circuitry - Reduces noise & hum found in long cable runs.
Level (Gain) and EQ (Peaking) Controls.
Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.

Applications:

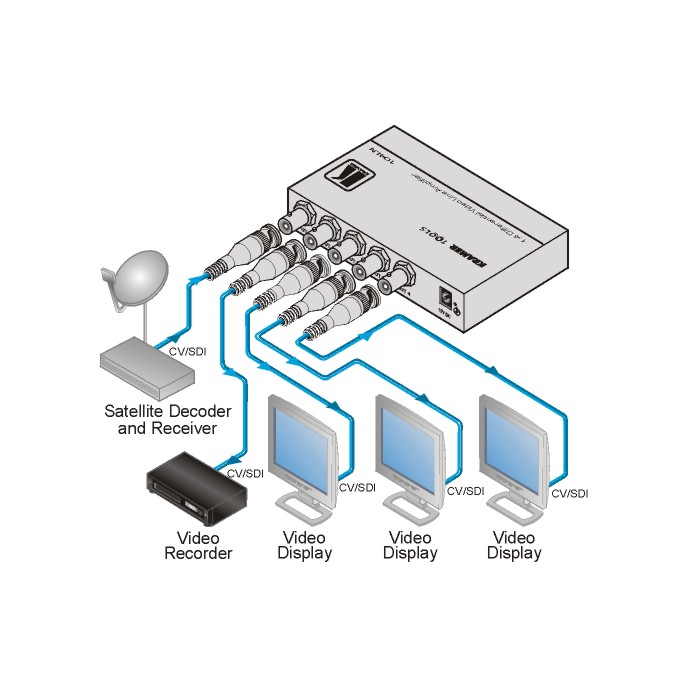

Any system requiring a compact distribution amplifier and line driver.

Auditoriums, churches, schools, home theater systems.

Rental and staging applications.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUT:	1 composite/SDI video, differential, 1Vpp/75Ω on a BNC connector.
OUTPUTS:	4 composite/SDI video, 1Vpp/75Ω on BNC connectors.
MAX. OUTPUT LEVEL:	1.6Vpp.
BANDWIDTH (-3DB):	423MHz.
DIFF. GAIN:	0.22%.
DIFF. PHASE:	0.1Deg.
K-FACTOR:	<0.05%.
S/N RATIO:	73.3dB.
CONTROL:	Level: −1.3 to 6dB; EQ. 0 to 10.2dB.
COUPLING:	DC.
POWER CONSUMPTION:	12V DC, 95mA.
DIMENSIONS:	12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”), W, D, H.
WEIGHT:	0.3kg (0.66lbs) approx.
INCLUDED ACCESSORIES:	Power supply, mounting bracket.
OPTIONS:	RK−3T 19" rack adapter.
