Bộ chia và khuếch đại HDMI 2x1-4 Kramer VM-24HC

Liên Hệ

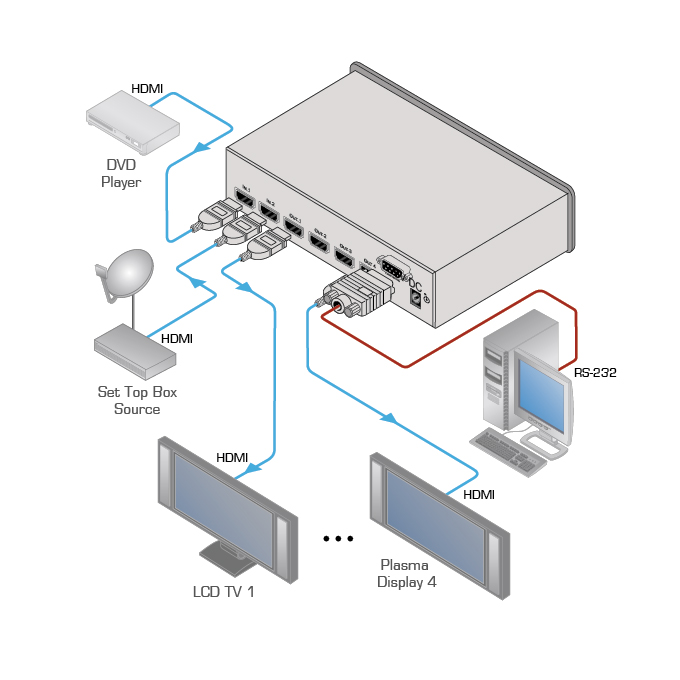

The VM-24HC is a high-performance switcher and distribution amplifier for HDMI signals. The unit accepts one of two HDMI inputs and distributes the selected signal to four HDMI outputs.

Max. Data Rate - 6.75Gbps (2.25Gbps per graphics channel).
HDTV Compatible.
HDCP Compliant.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
EDID Handling - Acquires the EDID from one output, from all connected outputs (auto−mix) or uses a default EDID.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
HDMI Support - With Deep Color, x.v.Color™, up to 7.1 Uncompressed Audio Channels.
3D Pass-Through.
Flexible Control Options - Front panel, IR remote & RS−232.
Desktop Size - Compact size. 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−1 adapter.

Applications:

Home theater, presentation and multimedia applications.

Rental and staging

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS:	2 HDMI connectors.
OUTPUTS:	4 HDMI connectors.
MAX. DATA RATE:	6.75Gbps (2.25Gbps per graphic channel).
COMPLIANCE WITH HDMI STANDARD:	Supports HDMI and HDCP.
CONTROLS:	EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS−232, IR.
INDICATORS:	POWER, IR, OUTPUT LEDs.
POWER CONSUMPTION:	5V DC, 1.1A.
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE:	−40° to +70°C (−40° to 158°F).
HUMIDITY:	10% to 90%, RHL non−condensing.
DIMENSIONS:	21.5cm x 16.3cm x 4.4cm (8.5” x 6.4” x 1.7”) W, D, H.
WEIGHT:	0.6kg (1.3lbs) approx.
INCLUDED ACCESSORIES:	Power supply.
OPTIONS:	RK−1 19” rack adapter.
