Bộ chia 1-10 và khuếch đại 3G HD-SDI Kramer VM-10HDxl

Liên Hệ

The VM-10HDxl is a high-performance distribution amplifier for 3G HD-SDI signals. The unit takes one input, provides reclocking and equalization and distributes the signal to ten identical outputs.

Max. Data Rate - 3Gbps.
HDTV Compatible.
Multi-Standard Operation - SDI (SMPTE 259M/344M), HD−SDI (SMPTE 292M) & 3G HD−SDI (SMPTE 424M).
Kramer Equalization & re‑Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
HD-SDI & SDI Input Indication LEDs.
Looping Input.
Standard 19” Rack Mount Size - 1U. Rack "ears" included.

Applications:

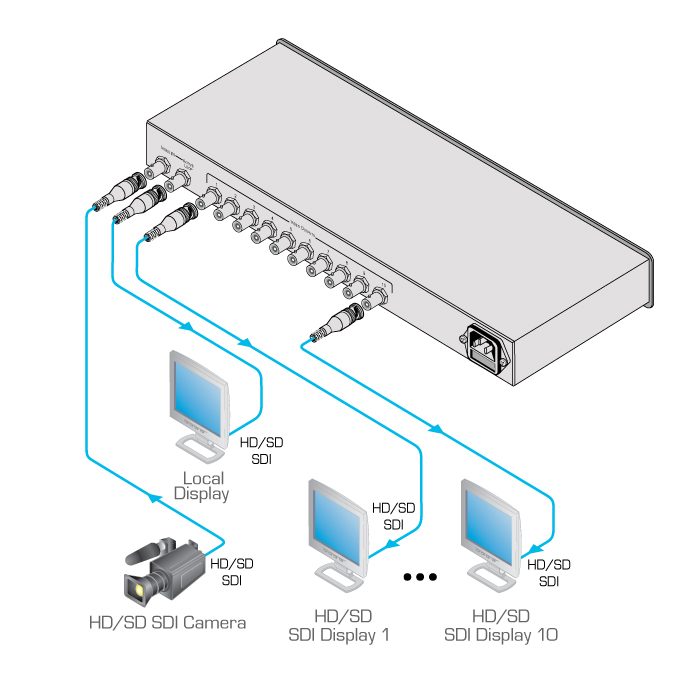

SDI production studios for signal distribution and equalizations.

Broadcast studios for on-air operation.

SDI field production.

Using with SDI video sources such a professional digital camera.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS:	1 SMPTE−259M/292M/424M serial video, 75Ω on a BNC connector.
OUTPUTS:	10 equalized and reclocked SMPTE−259M/292M/424M outputs, 75Ω on BNC connectors; 1 looped GENLOCK 75Ω/Hi−Z on a BNC connector.
MAX. OUTPUT LEVEL:	800mVpp/75Ω.
MAXIMUM DATA RATE:	Up to 2.97Gbps.
COUPLING:	AC.
POWER CONSUMPTION:	100/240V AC, 50/60Hz, 5VA.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	1.5kg (3.3lbs) approx.
INCLUDED ACCESSORIES:	Power cord, rack "ears".
