Bộ chia và khuếch đại HD-SDI Dualmode 1-4 Kramer VM-24HD

Liên Hệ

The VM-24HD is a high-performance distribution amplifier for HD-SDI and dual link HD-SDI signals. The unit can be configured as a 1:4 distribution amplifier, or as a 1:4 dual link distribution amplifier.

Max. Data Rate - 1.485Gbps.
HDTV Compatible.
Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD−SDI (SMPTE 292M) & Dual Link (SMPTE 372M).

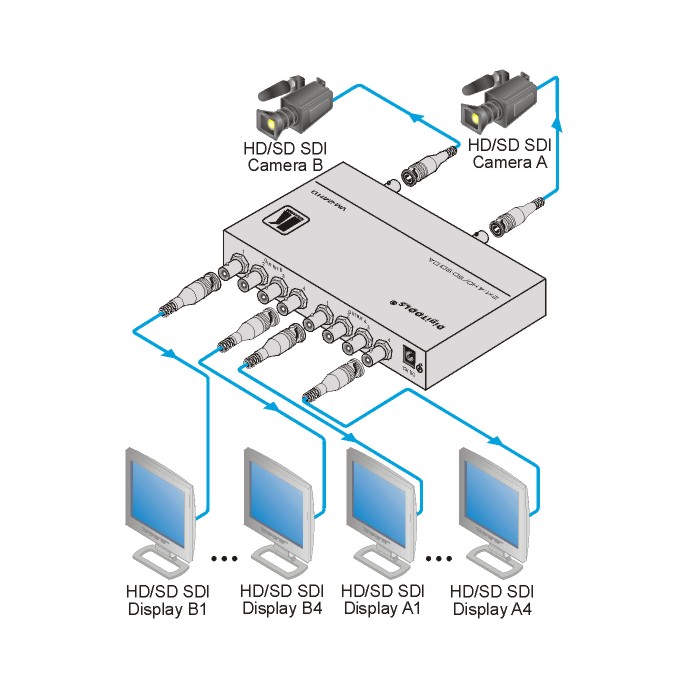

Dual-Mode Operation - Configure as two 1:4 or one dual link 1:4.
Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
HD-SDI & SDI Input Indication LEDs.
Compact MegaTOOLS® - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B rack adapter.

Applications:

SDI Dual Link production studios for signal distribution.

Broadcast studios for on-air operation.

SDI field production.

Using with SDI Dual Link video sources such as professional digital players.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS	2 SMPTE−259M, 344M, 292M, 372M serial video, 75Ω on a BNC connector.
OUPTUTS	8 equalized and reclocked SMPTE−259M, 344M, 292M, 372M outputs, 75Ω on BNC connectors.
MAX. OUTPUT LEVEL:	800mVpp/75Ω.
MAX. BAUD RATE:	1.485Gbps.
POWER CONSUMPTION:	12V DC, 250mA.
DIMENSIONS:	18.8cm x 11.4cm x 2.4cm (7.4" x 4.5" x 1.0") W, D, H.
WEIGHT:	0.5kg (1.1lbs) approx.
INCLUDED ACCESSORIES:	Power supply, mounting bracket.
OPTIONS:	RK−T2B 19" rack adapter.
