Bộ chia và khuếch đại 2x1-4 HDMI Kramer VM-24H

Liên Hệ

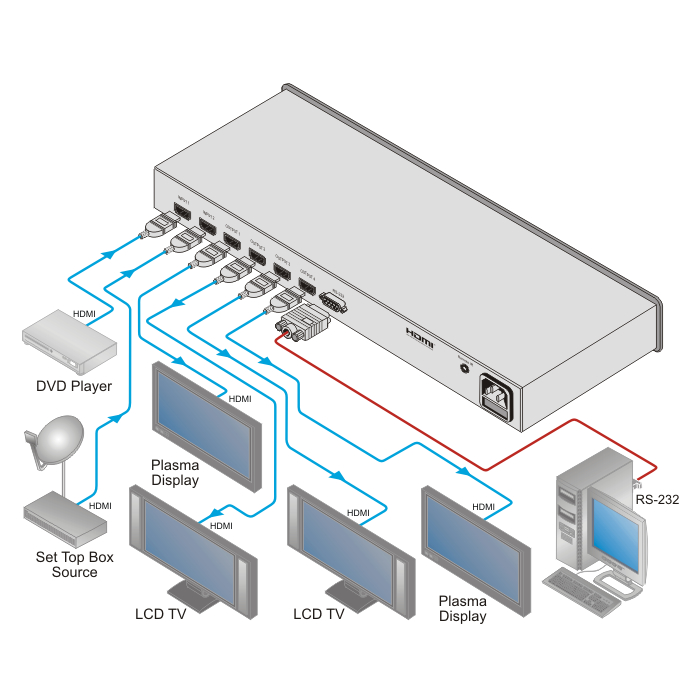

The VM-24H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to four identical outputs.

Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
HDTV Compatible.
HDCP Compliant.
HDMI Support - Deep Color, x.v.Color™, Lip Sync, CEC.
3D Pass-Through.
I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
Active Output LED Indicators.
Control - Front panel, RS−232, IR switching.
Worldwide Power Supply - 100−240V AC.
Standard 19” Rack Mount Size - 1U. Rack “ears” included.

Applications:

Home theater.

Presentation and multimedia applications.

Rental and staging.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUTS:	2 HDMI connectors.
OUTPUTS:	4 HDMI connectors.
BANDWIDTH:	6.75Gbps (2.25Gbps per graphic channel).
COMPLIANCE WITH HDMI STANDARD:	Supports HDMI and HDCP.
CONTROLS:	EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS−232, IR.
INDICATOR LEDS:	Output status LEDs.
POWER CONSUMPTION:	100−240V AC, 50/60Hz, 16VA.
DIMENSIONS:	19" x 7" x 1U W, D, H, rack mountable.
WEIGHT:	2.5kg (5.5lbs) approx.
INCLUDED ACCESSORIES:	Power cord, null−modem adapter, Windows®−based control software, IR remote control.
OPTIONS:	External remote IR receiver cable.
