Bộ chia 1-5 và khuếch đại audio Kramer 105A

Liên Hệ

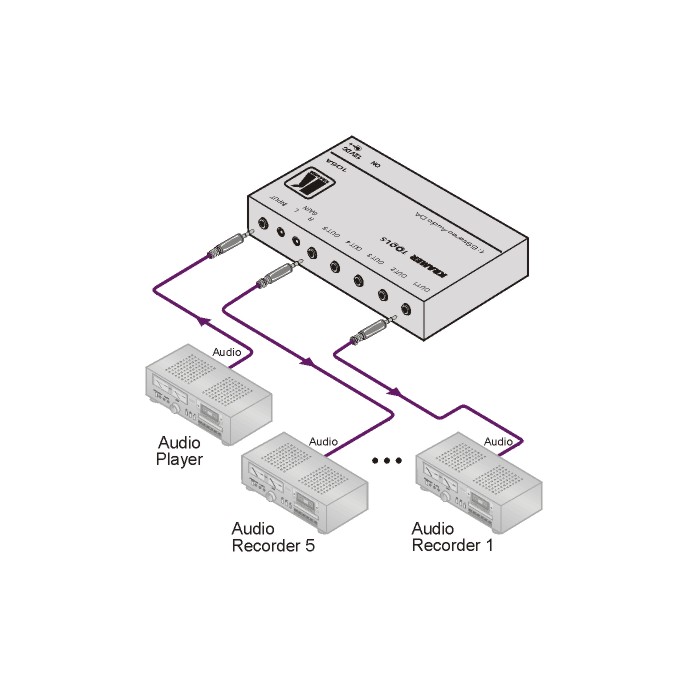

The 105A is a high-performance distribution amplifier for unbalanced stereo audio signals. It takes one stereo input and distributes the signal to five identical stereo outputs.

Level (Gain) Controls.
S/N Ratio - 80dB (unweighted).
Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.

Applications:

Video/audio duplication studios

Retail showrooms, home theater systems

Any audio system requiring multiple outputs from a single source

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUT:	1 unbalanced stereo/balanced mono, 1Vpp/33kΩ on a 3.5mm mini jack.
OUTPUTS:	5 unbalanced stereo/balanced mono, 1Vpp/50Ω on 3.5mm mini jacks.
MAX. OUTPUT:	5Vpp.
AUDIO BANDWIDTH (-3DB):	20kHz.
S/N RATIO:	80dB unweighted.
CONTROL:	Left and right gain rear trimmers (0 to +3.5dB).
COUPLING:	AC.
AUDIO THD + NOISE:	0.03% (2nd harmonic).
POWER CONSUMPTION:	12V DC, 100mA.
DIMENSIONS:	12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H.
WEIGHT:	0.28kg (0.62lbs) approx.
INCLUDED ACCESSORIES:	Power supply, mounting bracket.
OPTIONS:	RK−3T 19" rack adapter.
