Bộ chia 1-2 và khuếch đại AV audio Kramer PT-102AN

Liên Hệ

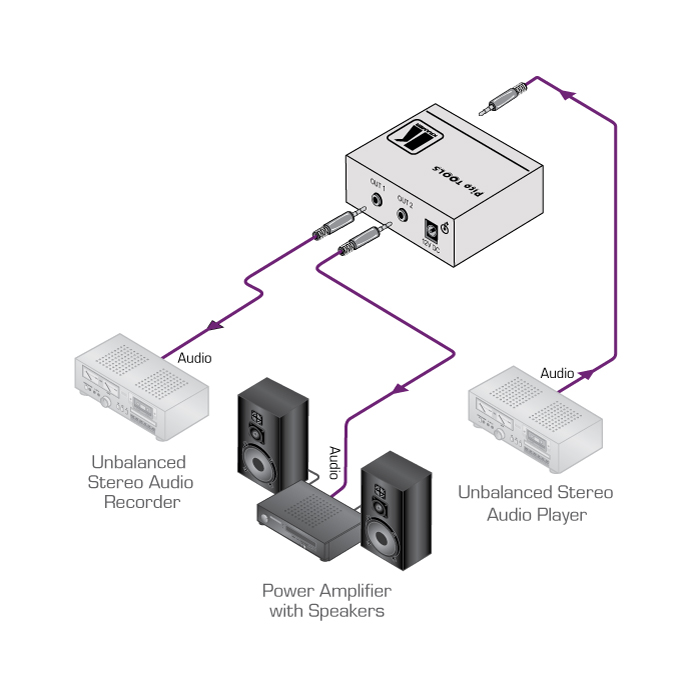

The PT-102AN is a high-performance audio distribution amplifier for unbalanced stereo signals. The unit takes one stereo input and distributes the signal to two identical stereo outputs.

Level (Gain) Controls.
S/N Ratio - 85dB.
Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.

Applications:

Audio/video duplication studios.

Retail showrooms, home theater systems.

CCTV and security systems.

Bảo Hành:

12 Tháng

Tình Trạng

: Đang Có Hàng

Nhà Sản Xuất

: Distribution Amplifiers

INPUT:	1 unbalanced stereo audio on a 3.5mm mini jack.
OUTPUTS:	2 unbalanced stereo audio on 3.5mm mini jacks.
MAX. OUTPUT LEVEL:	5Vpp.
BANDWIDTH (-3DB):	>100kHz.
S/N RATIO:	85dB @1kHz.
CONTROLS:	Level: −55dB to +20dB.
COUPLING:	AC.
AUDIO THD + NOISE:	0.01% @1kHz.
AUDIO 2ND HARMONIC:	0.004% @1kHz.
POWER CONSUMPTION:	12V DC, 20mA.
DIMENSIONS:	6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96") W, D, H.
WEIGHT:	0.14kg (0.31lbs) approx.
INCLUDED ACCESSORIES:	Power supply, mounting bracket.
OPTIONS:	RK−4PT 19” rack adapter.
