INPUT: |

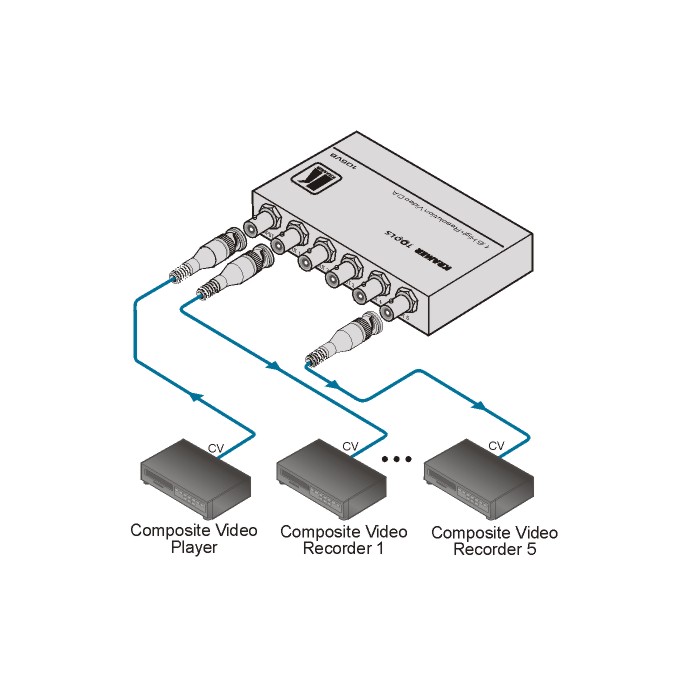

1 composite video, 1Vpp/75Ω on a BNC connector. |
|
OUTPUTS: |
5 composite video, 1Vpp/75Ω on BNC connectors. |
|
MAX. VIDEO OUTPUT: |
2Vpp. |
|
VIDEO BANDWIDTH (-3DB): |
400MHz. |
|
DIFF. GAIN: |
0.1%. |
|
DIFF. PHASE: |
0.1Deg. |
|
K-FACTOR: |
<0.05%. |
|
S/N RATIO: |
80dB. |
|
CONTROL: |
Up to +6dB. |
|
COUPLING: |
AC. |
|
POWER CONSUMPTION: |
12V DC, 100mA. |
|
DIMENSIONS: |
12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”) W, D, H. |
|
WEIGHT: |
0.3kg (0.66lbs) approx. |
|
INCLUDED ACCESSORIES: |
Power supply, mounting bracket. |
|
OPTIONS: |
RK−3T 19” rack adapter. |
