Bộ chia 1-3 và khuếch đại Composite Video Kramer PT-103V
Bộ chia 1-3 và khuếch đại Composite Video Kramer PT-103V
Liên Hệ

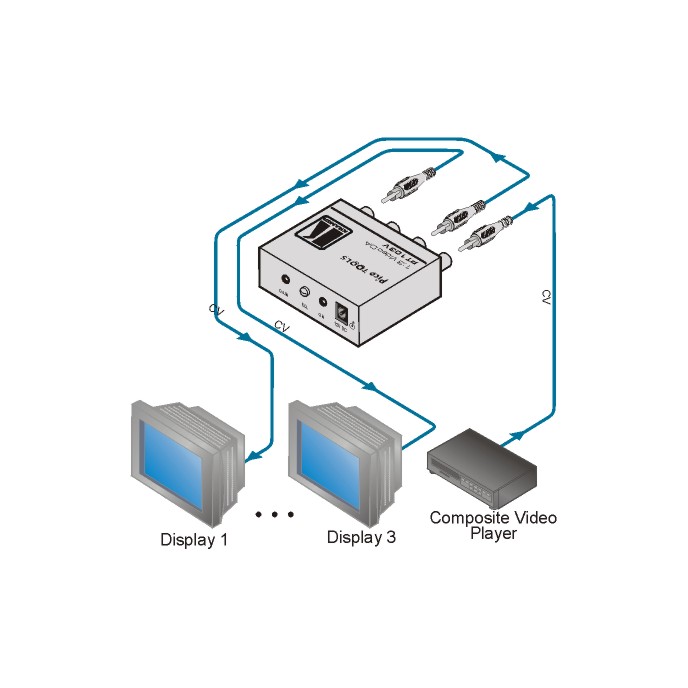

The PT-103V is a composite video distribution amplifier. It takes one input, provides correct buffering and isolation and distributes the signal to three identical outputs.



Applications:

  • Video duplication studios.
  • Rental/staging and home theater use.



12 Tháng
: Đang Có Hàng
INPUT: 1 composite video, 1Vpp/75Ω on an RCA connector.
OUTPUTS: 3 composite video, 1Vpp/75Ω on RCA connectors.
MAX. OUTPUT LEVEL: 1.9Vpp.
BANDWIDTH (-3DB): 407MHz.
DIFF. GAIN: 0.04%.
DIFF. PHASE: 0.03Deg.
K-FACTOR: <0.05%.
S/N RATIO: 78dB.
CONTROLS: Gain: –1.2dB to +6.2dB, EQ.: 0 to + 6.1dB, 50MHz.
COUPLING: AC.
POWER CONSUMPTION: 12V DC, 28mA.
DIMENSIONS: 6.2cm x 5.2cm x 2.4cm (2.44" x 2.05" x 0.94") W, D, H.
WEIGHT: 0.14kg (0.31lbs) approx.
INCLUDED ACCESSORIES: Power supply, mounting bracket.
OPTIONS: RK−4PT 19" rack adapter.
