| General description | Quad LCD video wall controller with preset display modes and custom modes created by user |
| Main functions | Video processor : 10-bits |
| LCD controlled by one processor : 4 | |
| Max. display contents in 4 LCDs : 2 | |
| Modular cascade forlarge display | |
| Video wall with portrait LCD without rotating input source | |
| Video wall with PIP/POP | |
| Share 4k/2k input in multiple units cascaded | |
| Preset modesselected by dip SW | |
| Looping playback and dynamic position shift for LCD life protection | |
| Input & Output | Video Input Ports : 1x Display Port, 1x HDMI, 1x DVI-I |
| (DVI-D, VGA, HDMI) | |
| Video Output : 4x HDMI | |
| 4k/2k HDMI loop out port for daisy chain | |
| Audio Output : HDMI audio | |
| Support YPbPr video via VGA input port | |
| Support DVI-D, VGA & HDMI by DVI-I input port | |
| 4k/2k @30Hz, 1080p @120Hz, 2560x1600 / | |
| 3840x1080 @60Hz input with 4:4:4 sampling | |
| Frame Lock for system synchronization | |
| Selective EDID for optimized video quality | |
| HDCP compliant | |
| Image rotation | Image 90°/270° flip and rotation for portrait display (All LCD at the same time) |
| Image 180° flip and rotation for LCD at top/down installation (All LCD at the same time) |
|
| Video wall | Max. source resolution shared to 4 LCDs : FHD |
| Maximum 4 LCD as one display unit | |
| 4K/2k input source can be split and assigned to multipleunits to build one true 4k/2k video wall | |
| Each display unit location can be adjusted up to +_900 pixels in all directions for image mapping | |
| Custom display modes created by user with LCD at any position and angle | |
| Looping playback for custom modes | |
| Image shift for LCD burn-in mark protection | |

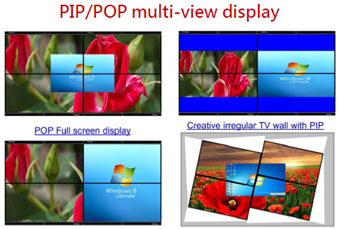

| PIP (Picture in Picture) and POP (side by side) | PIP up to 1024x768 at selectable location with selectable aspect ratio and input source |
| POP to show two image in one video wall with full screen or keep original aspect ratio in landscape & portrait directions | |
| High end 3D motion adaptive de-interlace in PIP/POPwindows | |
| Video processing | 10 bits 4:4:4 full bandwidth sampling with 3D de-interlace, smooth edge algorithm and 3:2/2:2 film mode processing |
| High quality video and graphics scaling up and scaling down | |
| Color adjustment for one display unit (Hue, saturation, sharpness, contrast, brightness, preset modes, discrete RGB) | |
| System control for easy use |
Full function IR Remote controller |
| Cabled IR Receiver Extender (up to 20 meters) | |
| Ethernet control and operation via LAN or WiFi (NB, iPad, Smart phone), need to add external Ethernet to UART module | |
| ASCII control protocol over RS-232 | |
| Auto Shut off output signal when input is missing | |
| GAlign PC tool | |
| Rack Mount Bracket | 19 inch 1U High Rack Mount Bracket (1U-440L) |
| Dimension (WxDxH) | 17.4" x 6.38" x 1.73" (442mm x 162mm x 44mm) |
| Weight | 1.8 kg / 3.98 lb |
| Power Supply | AC 100~240V 50/60Hz |
